RolaSafe

Steel slats to give optimal stability. The RolaSafe is part of our line-up for curtains suitable for load securing.

Stabilise Your Curtain

The RolaSafe is part of our line-up for curtains suitable for load securing. To improve the stability of the side curtain, it’s been equipped with steel strips. The curtain consists of PVC 900 gr/m2 with steel strips which directly connects the buckle with the runner for optimal stability. These steel strip reinforcements make it a lightweight but solid solution (significantly lighter than a RolaPlank) with unique benefits. And, the full width of the loading area can be used.

Ask our sales representatives for beverage transport possibilities.

Steel reinforcements

Steel slats connect buckle and runner

Lightweight

A solid but lightweight solution against bulging

Finishing

Standard equipped with reinforcements and fine finishing

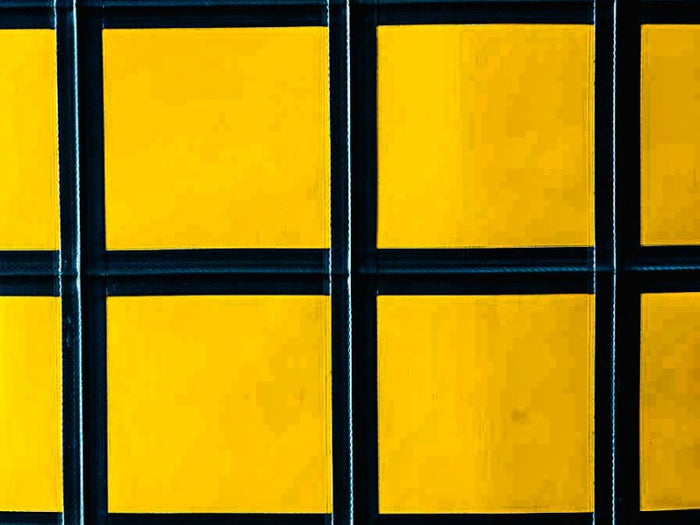

Steel slats reinforcements

RolaSafe satisfies the prescribed standards concerning load safety. In combination with a special selection of rollers, buckles, hooks and support bands, the most stringent specifications can be met. Thus, also for intermodal transport. This model comes as standard with a network of horizontal welded 1300 daN webbing. The full structure of the RolaSafe is built to protect cargo from bulging.

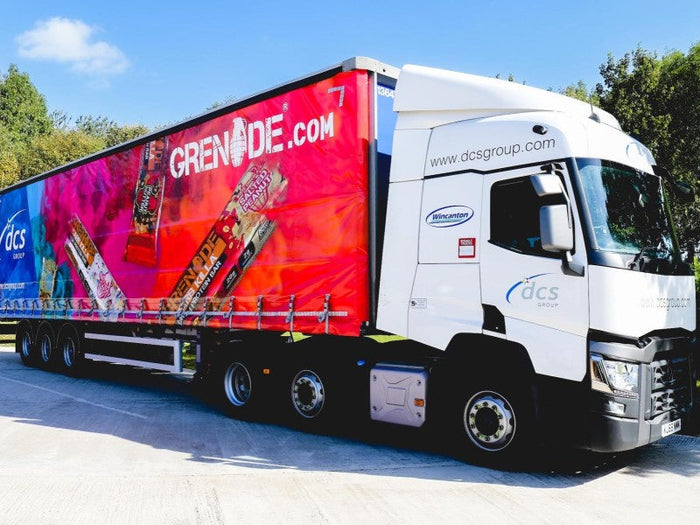

Since the entire side curtain is to be very tightly stretched, it is an excellent surface to which advertising can be applied. With InfiniShield we bring together a full range of digital printing technologies on PVC material combined with multiple protective.

Certified upper structure strength according to Code XL EN 12642

To secure the cargo to be transported on the loading floor without additional load securing measures, the upper structure strength must be increased. For trailers with an upper structure according to Code XL EN 12642, the upper structure can be used for load securing applications - only when the vehicle is loaded form-fitted. The upper structure absorbs the dynamic forces occurring during transport. This means: No additional load securing elements are required for form-fitting cargo.

The RolaSafe side curtain is Code XL EN 12641-2 certified when used in a Code XL trailer and when 24> buckles are fitted. The side curtains are considered as a vital part of the total upper structure.

It’s all in the details

The finishing of our products is considered to be the best in the industry. All curtains come as standard with finishing:

  • Bottom and corner reflection tape
  • 3 pillar reinforcements
  • Top and bottom corner reinforcements
  • Top water barrier
  • Front and rear (high frequency) welded keder
  • Pallet reinforcement up to buckle line

As we’ve been doing so for over 5 decades.

Upgrade your RolaSafe

InfiniShield
InfiniShield
Anti-Theft Equipment
Anti-Theft Equipment

Product Specifications

Discover all product specifications of RolaSafe:
Material
PVC 900 gr/m2 Panama
Buckles
Standard Locking Buckles (Stainless Steel)
Buckles Mounting

Huck Bolted
Optional: Backplate and Nut
Hooks

Standard Flat Hook (Zinc Plated)
Optional: Customer Choice
Rollers
Depends on Roof Track
Rollers Mounting

Stitched
Optional: Screwed / Huck Bolted
Vertical Webbing
Vertical Webbing Replaced by Steel Slats
Horizontal Webbing
1300 daN Webbing (=<600mm Distance for XL Certification)
Reflection Tape

Below and Corners
Optional: Customer Choice
Pillar Reinforcement
3 Pillar Reinforcements
Corner Reinforcements
 Top and Bottom
Water Barrier
On Top
Optional: Bottom
Front and Rear
Fixed Point:
EU: Alu Hook Profile or Keder (High Frequency Welded)
UK: Steel Tube with Open Hem
Roll Up Point:
EU: Alu Keder Profile or Keder (High Frequency Welded)
UK: Steel Tube with Open Hem
Pallet Reinforcement
 Until Buckle Line
