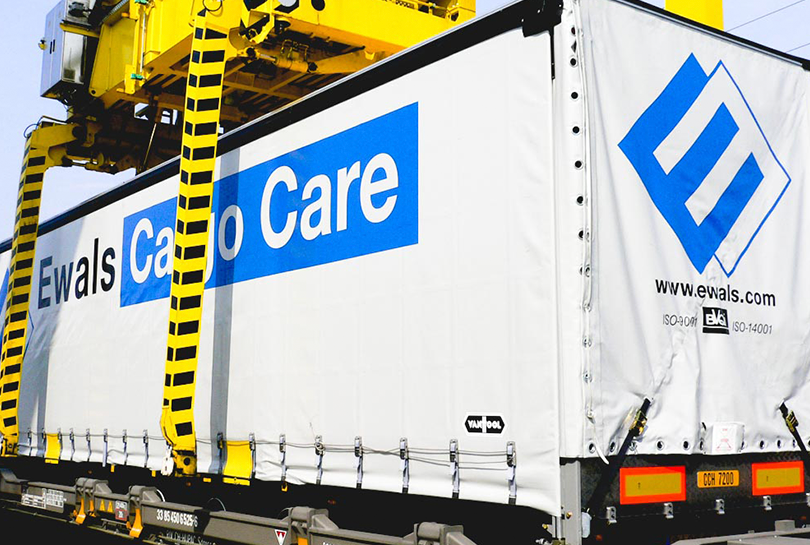

RolaModal Ewals
RolaModal Buckles

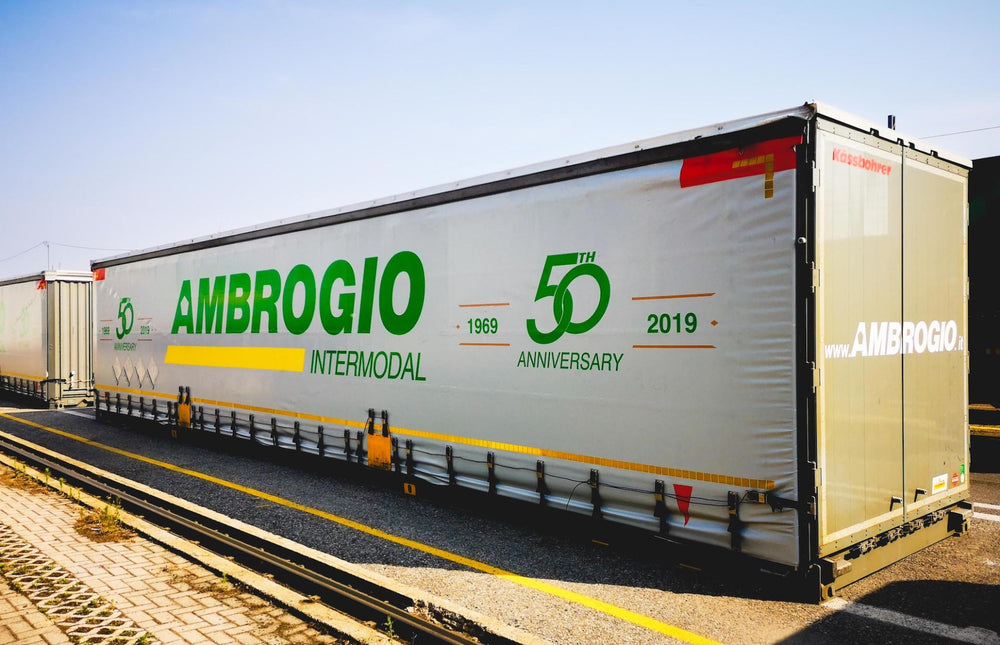

RolaModal Ambrogio

RolaModal

Side curtain solution for intermodal transport The RolaModal is based on the RolaMotive with additional specific features for intermodal transport.

RolarModal - for Intermodal

The RolaModal is based on the RolaMotive with additional specific features for intermodal transport. This EN 12641-2 Code XL side curtain can be used for load securing and intermodal purposes – only for semi-trailers. The curtain consists of PVC 900 gr/m2. This model comes as standard with a network of both horizontal (2400 and 1300 daN) and vertical (2400 daN) welded webbing. The full structure of the RolaModal is built to provide a solution to our customers who require more safety and use it for a variety of mobilities such as a combination of road and rail (intermodal) transport.

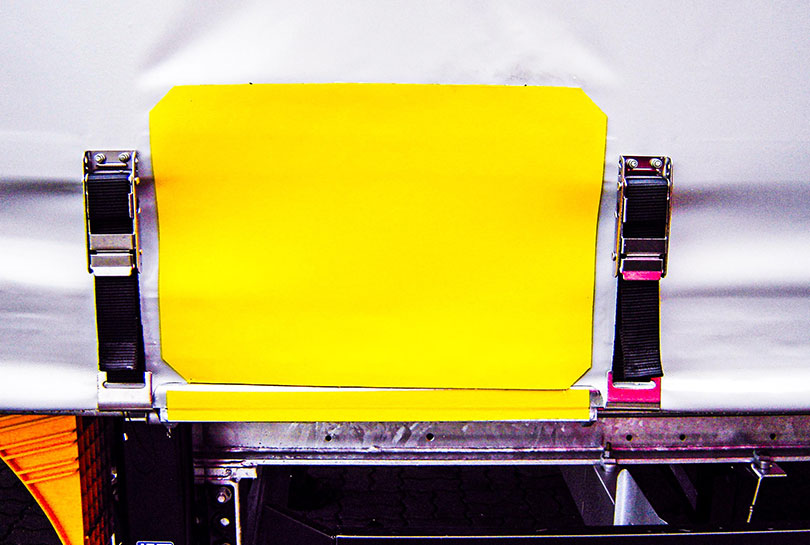

This side curtain can be used for a certified Code XL EN 12642 trailer. Which makes it suitable for intermodal international transport. 2 Yellow plates (Huckepack/DB) per side and locking buckles come as standard. Ask our sales representatives for beverage transport possibilities.

Intermodal transport

Suitable for intermodal

Code XL

Conform EN 12641-2

Finishing

Standard equipped with reinforcements and Keder high-frequency (HF) welded

Certified upper structure strength according to Code XL EN 12642

To secure the cargo to be transported on the loading floor without additional load securing measures, the upper structure strength must be increased. For trailers with an upper structure according to Code XL EN 12642, the upper structure can be used for load securing applications - only when the vehicle is loaded form-fitted. The upper structure absorbs the dynamic forces occurring during transport. This means: No additional load securing elements are required for form-fitting cargo.

The RolaMotive side curtain is Code XL EN 12641-2 certified when used in a Code XL trailer. The side curtains are considered as a vital part of the total upper structure.

It’s all in the details

The finishing of our products is considered to be the best in the industry. All curtains come as standard with finishing:

  • Bottom and corner reflection tape
  • 3 pillar reinforcements
  • Top and bottom corner reinforcements
  • Top water barrier
  • Front and rear (high frequency) welded keder
  • Pallet reinforcement up to buckle line

As we’ve been doing so for over 5 decades.

Upgrade your RolaModal

InfiniShield
InfiniShield
Anti-Theft Equipment
Anti-Theft Equipment

Product Specifications

Discover all product specifications of RolaModal:
Material PVC 900 gr/m2 Panama
Buckles
Standard Locking (Stainless Steel)
Buckles Mounting
Screwed
Optional: Huck Bolted
Hooks
Standard Flat Hook (Zinc Plated)
Optional: Customer Choice
Rollers
Depends on Roof Track
Rollers Mounting
Stitched
Optional: Screwed / Huck Bolted
Vertical Webbing
2400 daN Welded
Horizontal Webbing

Webbing Buckle Line 2400 daN,
Above Multiple 1300 daN Webbing (=<600mm Distance)
Reflection Tape
Below and Corners
Optional: Customer Choice
Pillar Reinforcement 3 Pillar Reinforcements
Corner Reinforcements Top and Bottom
Water Barrier
On Top
Optional: Bottom
Front and Rear
Keder (High Frequency Welded)
Optional: Open Hem
Pallet Reinforcement
Until Buckle Line
Yellow Plates 2 per Side (PVC Welded)
